Digital Programmable Heating Cooling Dry Bath Laboratory Dry Bath Incubator
Programmable (Heating & Cooling)
Cat. No. :
YB-DBHCPBrand :
YanbioProduct Origin :
ChinaSpec. :
Programmble, Heating,Cooling, 0-100℃Product Introduction

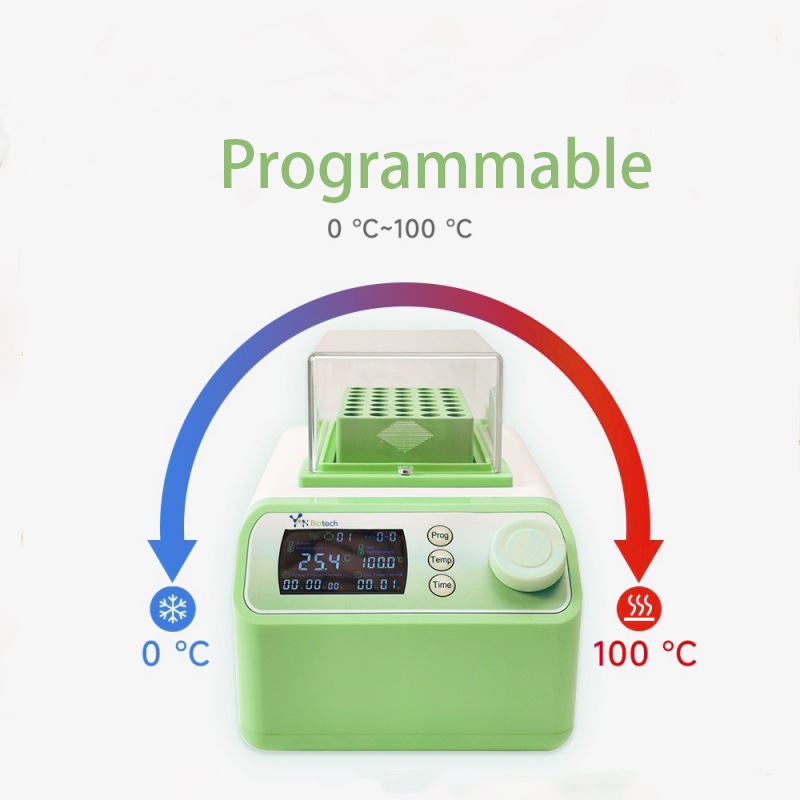

Yanbiotech Series programmable heating & cooling dry bath incubator offers precise, automated temperature control for laboratory applications that require specific heating and cooling cycles. These instruments are widely used in molecular biology, clinical diagnostics, and chemical analysis.
Product Specifications
| Product Name | Dry Bath with Heating Function | Dry Bath with Heating, Cooling Function | Dry Bath with Cooling, Heating, Programmable Function | Dry Bath with Cooling, Heating, Shaking Function |
| Cat. No. | YB-DBH | YB-DBHC | YB-DBHCP | YB-DBHCS |
| Programmable | Yes | |||
| Horizontal Amplitude | 3mm | |||
| Speed Range | 200-1500rpm | |||
| Temperature Control Range | +5℃-100℃ | 0℃-100℃ | 0℃-100℃ | 20℃-100℃ |
| Temperature Setting Range | +5℃-100℃ | 0℃-100℃ | 0℃-100℃ | 0℃-100℃ |
| Time Setting | 1min-99h59min | 1min-99h59min | 1min-99h59min | 1min-99h59min |
| Speed Range | 40-200rpm | |||
| Module Temperature Stability 40-100℃ | ≤±0.5 ℃ | ≤±0.5 ℃ | ≤±0.5 ℃ | ≤±0.5 ℃ |
| Module Temperature Uniformity ＜40℃ | ≤±0.3 ℃ | ≤±0.3 ℃ | ≤±0.3 ℃ | ≤±0.3 ℃ |
| Module Temperature Uniformity ＞40℃ | ≤±0.5 ℃ | ≤±0.5 ℃ | ≤±0.5 ℃ | ≤±0.5 ℃ |
| Temperature Display Accuracy | +0.1℃ | +0.1℃ | +0.1℃ | +0.1℃ |
| Lifting Speed of Heating and Cooling | ≤15 min (20 ℃-100 ℃) |
≤15 min (20 ℃-100 ℃) |
≤15 min (20 ℃-100 ℃) |
≤12 min (20 ℃-100 ℃) |
| Sample Processing Capacity | 1 Standard Module | 1 Standard Module | 1 Standard Module | 1 Standard Module |
| Input Power | AC100 V/AC220 V 50 Hz/60 Hz |
AC100 V/AC220 V 50 Hz/60 Hz |
AC100 V/AC220 V 50 Hz/60 Hz |
AC100 V/AC240 V 50 Hz/60 Hz |
| Power | 150W | 150W | 150W | 200W |
| Fuse | 250V/3A | 250V/3A | 250V/3A | 250V/3A |
| Dimension | 175×278×197 mm | 175×278×197 mm | 175×278×197 mm | 178×278×244 mm |
| Net Weight | 2.2kg | 3.3kg | 3.3kg | 16k |
Key Features
Programmable Temperature Cycles: Set multiple temperature steps for time-dependent experiments.
Precise Temperature Control: 10° Angle tray are suitable for different application enviroment.
Digital Interface & Memory Storage: Save and recall temperature programs for repeatability.
Interchangeable Heating Blocks: Different block sizes accommodate various tube types.
Compact & Low Maintenance: No need for water, reducing contamination risks.
Module Parameter
| Module | YB-DBHC |
| Standard Module | 1.5 mLx 35 |
| Optional Module A | 0.5 mL X 54 |
| Optional Module B | 0.2 mL X 96 |
| Optional Module C | 2.0 mL X 35 |
| Optional Module D | 0.2 mL X 32+1.5 mL X 25 |
| Optional Module E | 5 mL X 24 |
| Optional Module F | 15 mL X 12 (high lid) |
| Optional Module G | 50 mL X 6 (high lid) |
| Optional Module H | 0.2 mL X 96 ( ELISA plate) |
| Optional Module I | 0.2 mL X 32+0.5 mL X 10+1.5 mL X 15 |
| Optional Module J | 10mL X 15 |
| Dimensions(mm) | 175x278x197 |
| Weight(kg) | 3.3 |
Applications
🔬 PCR & qPCR Sample Prep: Precise heating/cooling for DNA/RNA work.
🧪 Enzyme Kinetics Studies: Automated temperature shifts for reaction optimization.
🦠 Microbiology & Cell Studies: Controlled incubation conditions.
⚗️ Chemical & Drug Development: Temperature-sensitive chemical reactions.
🩺 Clinical Diagnostics: Sample preservation and processing at defined temperature cycles.
