Home Lab Equipment PCR Instrumemt

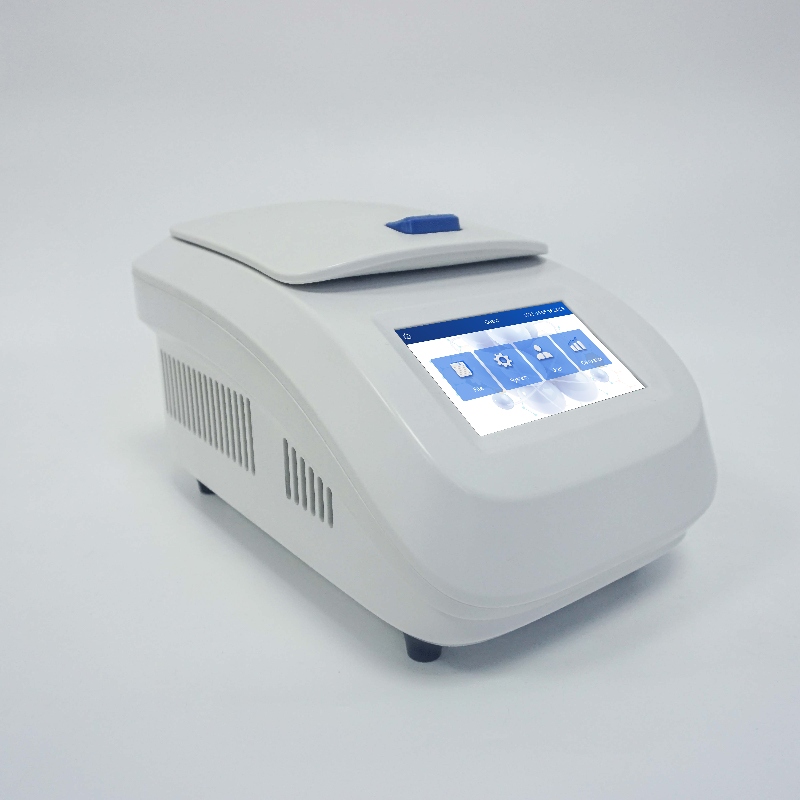

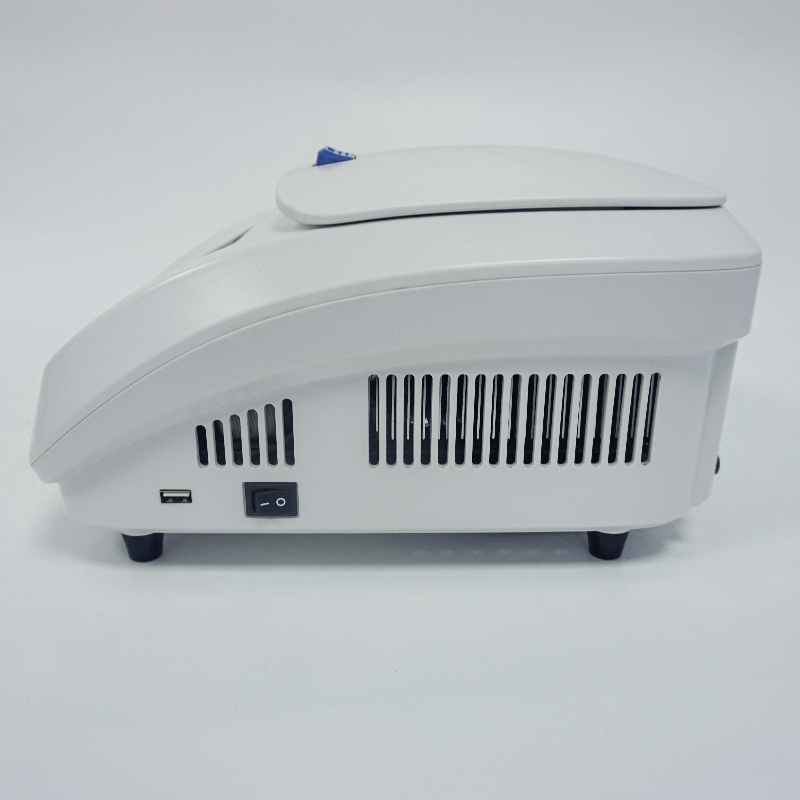

Gradient PCR Instrument Thermal Cycler for DNA Amplification PCR Analyzer Portable PCR Machine

Gradient PCR Instrument Thermal Cycler for DNA Amplification PCR Analyzer Portable PCR Machine

Designed for the rapid amplification of specific DNA segments





  • Cat. No. :

    YB-PCR
  • Brand :

    Yanbiotech
  • Product Origin :

    China
  • Spec. :

    Gradient
  • Product Details

Product Introduction

This gradient Thermal cycler is ideal for thermal cycling and protocol optimization in molecular biology, medical,food,genetic testing and etc





Product Specifications

Product Name

Gradient Thermal Cycler

Gradient Thermal Cycler with Big Screen

Item Code

YB-PCR

YB-PCR-1

Temperature Control Method

Block/Tube

Block/Tube

Block Temperature

0~105℃

0~105℃

Timer

1s-59min59s

 1s~9:99:99

Block Temperature Accuracy

≤ ±0.25℃

≤ ±0.2℃

Heating Up Rate

4℃ /s

6℃ /s

Cooling Down Rate

3℃ /s

5℃ /s

Gradient Temperature Range

30-105℃

30-105℃

Timing Range

0-99h60min

0-99h60min

Gradient Set Span

Max. 42℃

Max. 42℃

Gradient Temperature Accuracy

±0.3℃

±0.3℃

Time Increase/Decrease

-599~599s

-599~599s

Temperature Increase/Drecrease

-9.9℃~9.9℃

-9.9℃~9.9℃

Input power

AC 100-240V, 50/60HZ

AC 100-240V, 50/60HZ

Max Power

600w

700w

Size

200*300*170mm

400*260*228mm

Net Weight

4.5kg

8.5kg


Product Feature:

  • Excellent amplication due to high quality Semiconductor.
  • 42℃ gradient range, ideal for protocol optimization.
  • High precise temperature with good uniformity, quick heating up and cooling down benefit from advanced peltier based and PID technologies.
  • Industrial grade operation system, can work 7x24hs.
  • 5-inch touch screen,easy to edit,operate, save programs
  • Impact design, small size.
  • Extremely quiet.


Application:

✅ Medicine & Disease Diagnosis

✅ Forensic Science

✅ Research & Biotechnology

✅ Archaeology & Anthropology

✅ Environmental Science

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

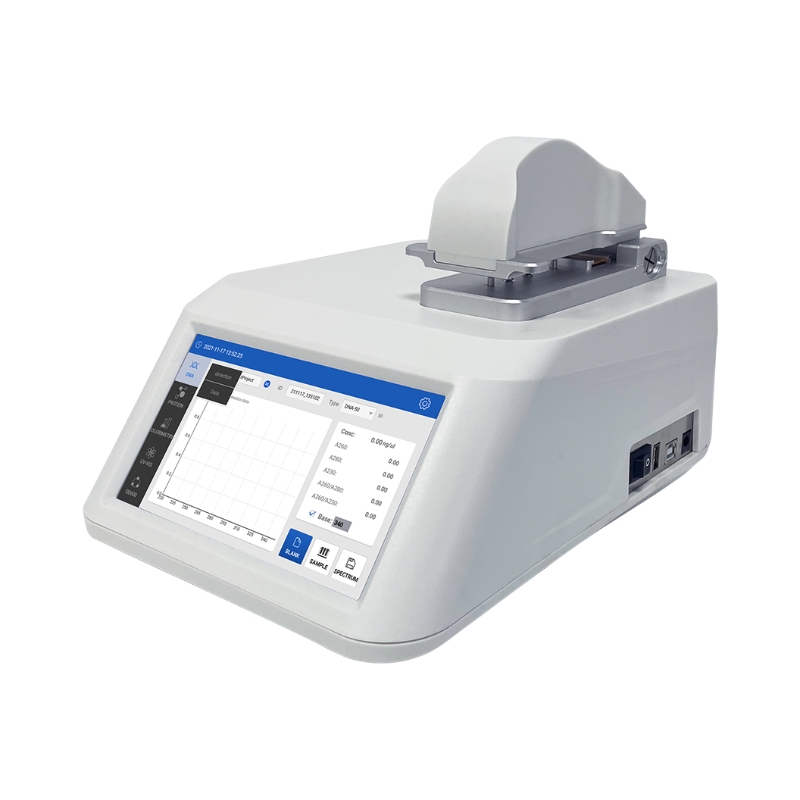

Nano Spectrophotometer
