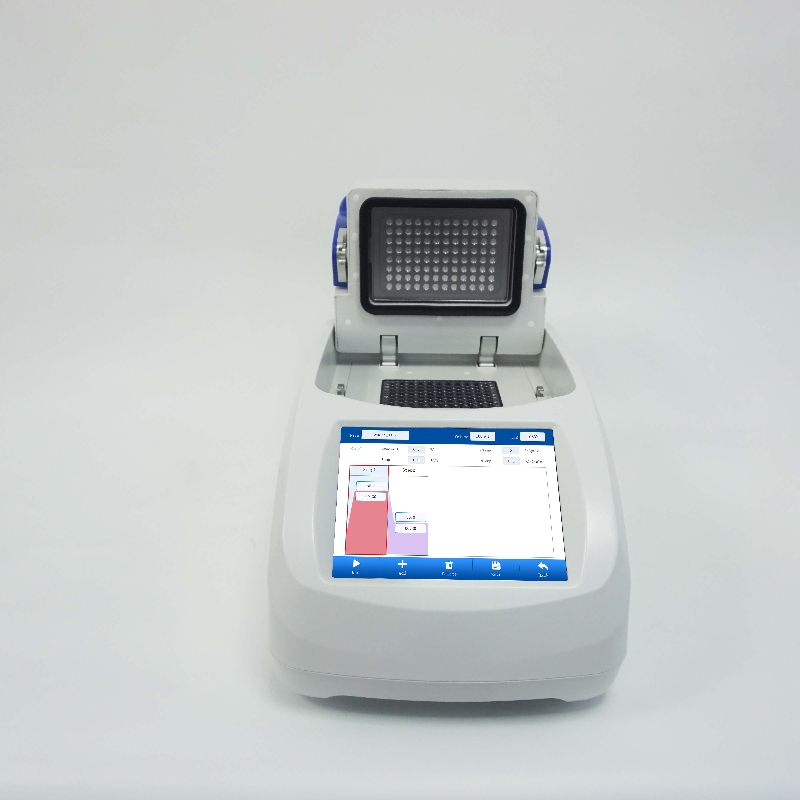

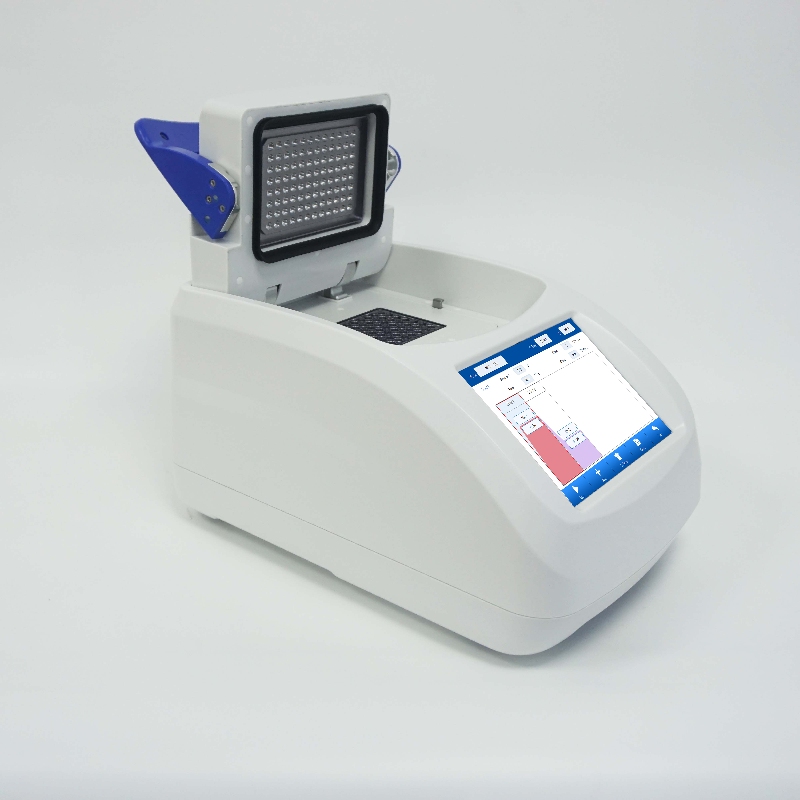

Thermal Cycler for DNA Amplification Gradient PCR Instrument PCR Analyzer Portable PCR Machine

Thermal Cycler for DNA Amplification Gradient PCR Instrument PCR Analyzer Portable PCR Machine

8-inch  Big Screen, Designed for the rapid amplification of specific DNA segments





  • Cat. No. :

    YB-PCR-1
  • Brand :

    Yanbiotech
  • Product Origin :

    China
  • Spec. :

    Gradient, 8-inch Screen
  • Product Details

Product Introduction

The Gradient Thermal Cycler, Cat. No: YB-PCR-1 is a upgraded generation thermal cycleron basis of our Pc-96,the advanced peltier technology brings accurate temperature control, make the cycles reaches up to a milion times. It's an ideal thermal cycler for researches of life sciences in most labs.



Product Specifications

Product Name

 One Generation Gradient Thermal Cycler

Two Generation Gradient Thermal Cycler

Item Code

YB-PCR

YB-PCR-1

Temperature Control Method

Block/Tube

Block/Tube

Block Temperature

0~105℃

0~105℃

Timer

1s-59min59s

 1s~9:99:99

Block Temperature Accuracy

≤ ±0.25℃

≤ ±0.2℃

Heating Up Rate

4℃ /s

6℃ /s

Cooling Down Rate

3℃ /s

6℃ /s

Gradient Temperature Range

30-105℃

30-105℃

Timing Range

0-99h60min

0-99h60min

Gradient Set Span

Max. 42℃

Max. 42℃

Gradient Temperature Accuracy

±0.3℃

±0.3℃

Time Increase/Decrease

-599~599s

-599~599s

Temperature Increase/Drecrease

-9.9℃~9.9℃

-9.9℃~9.9℃

Input power

AC 100-240V, 50/60HZ

AC 100-240V, 50/60HZ

Size

200*300*170mm

400*260*228mm

Net Weight

4.5kg

8.5kg


Product Feature:

  • 1024x768 pixel, 8-inch colortouch screen Automatically.
  • Gradient range 42℃.
  • High precise peltiers.
  • Peltier based technology, max heating up rate 6℃ /sec.
  • Good temperature uniformity reduce edge effect.
  • Small footprint,compact design.


Application:

✅ Medicine & Disease Diagnosis

✅ Forensic Science

✅ Research & Biotechnology

✅ Archaeology & Anthropology

✅ Environmental Science
