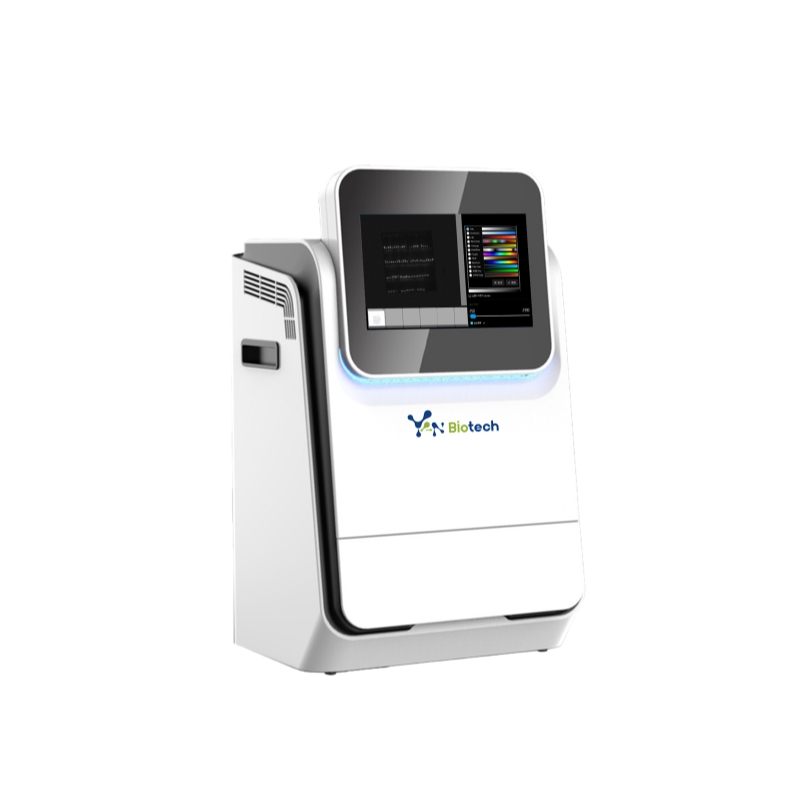

Multifunction Imaging System Chemiluminescence Imaging System Gel Documentation System
Multifunctional Imager (Gel Doc + Chemilluminescence+Optional Fluorescence)
Cat. No. :
YB-MF1Brand :
YanbiotechProduct Origin :
ChinaSpec. :
Chemi DocProduct Introduction
Compact and powerful, it significantly reduces the laboratory footprint. The optional detachable industrial computer (not a built-in tablet) offers faster and more stable operation, while avoiding the need for whole-machine returns due to tablet failure.
Product Specifications
|
Product Name |
Multifunction Imaging System |
|
|
Cat. No. |
YB-MF1 |
|
|
Camera |
Pixel Resolution |
6 million pixels |
|
Pixel Size |
4.54μm×4.54μm |
|
|
Readout Noise |
5.5e- RMS at 12 MHz |
|
|
Dark Current |
<0.0005 e-/pixel/sec. @ -30º C |
|
|
Signal-to-Noise Ratio |
42.2dB(HCG), 47dB(LCG) |
|
|
Exposure Time |
0.1ms~1h |
|
|
Binning Mode |
1×1, 2×2, 3×3 |
|
|
Grayscale |
16-bit (65536 levels) |
|
|
Cooling |
Relative to Ambient Temperature-65℃ |
|
|
Camera Type |
CCD camera, same as Bio-Rad ChemiDoc MP |
|
|
Lens |
Aperture |
F0.95 high-transmittance lens; upgrade to an optional F0.8 ultra-sensitive model. |
|
Type |
Motorized lens, no manual focusing required. |
|
|
Light Source |
Bright Field Light Source |
Downward-facing LED white light source, symmetrically distributed on both sides |
|
Dark Box |
Light Isolation |
Fully light-sealed, isolates environmental light. |
|
Door Control |
Door control sensor can control the on/off of the bright field light source. |
|
|
Field of View |
Effective field of view is 136mm*136mm (expandable to 200mm×200mm if needed). |
|
|
Industrial Computer |
13.1 inches, Windows 10 operating system |
|
|
External Interfaces |
Single USB 3.0 |
|
|
Operating Voltage |
100V-240V |
|
|
Product Power |
100W |
|
|
Product Net Weight |
48 Kg |
|
Key Features
1. Removable PC with 13.1 Inch touch screen.
2. Electronic Sample Drawer.
3. Electronic lifting platform
4. All LED light source (Incl. UV transmission, White transmission, optional Blue transmission)
5. Update to fluorescence module available (Incl. Visible RGB and NIR)
Applications
